GreenSpider - Some bug fixes and a new feature

Scritto da simon.
Lunedì 07 Maggio 2012, 05:26 am.



My homemade Revit plugin codenamed "GreenSpider" is still under development but some interesting features are already working fine!

New GreenSpider experimental prototype.

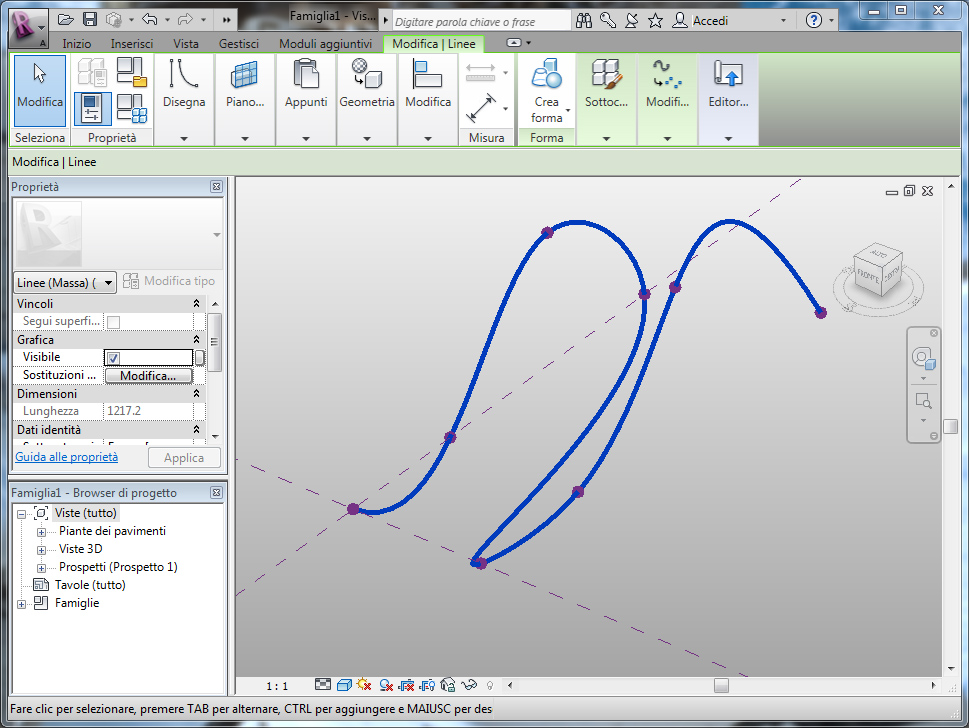

New GreenSpider experimental prototype. Now GS can generate splines through reference points in Revit.





Read some news about GreenSpider 1.0.

Autodesk Revit is a weird piece of software! Importing vertex through plain text files with GreenSpider is easy, but if you try to pick some measures you will notice they have been imported in US feet! So I modified my code and now it all seems working smooth and in centimeters.

New GreenSpider experimental prototype.

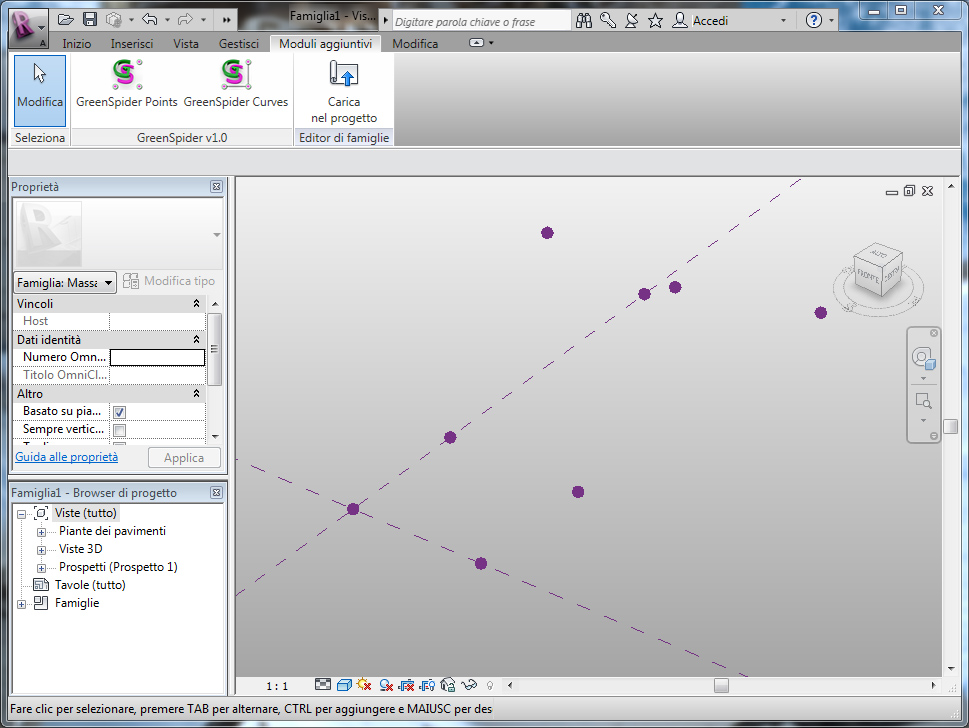

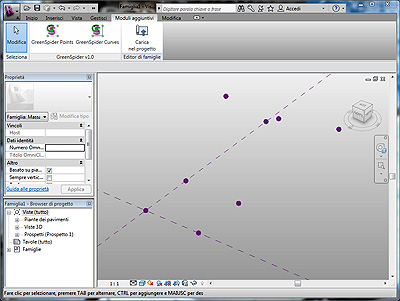

New GreenSpider experimental prototype. Two new icons on screen!.

GreenSpider is still experimental and not robust at all. I’m working on a segmentation algorithm able to “cut point clouds in slices”: then, it will be easy tracing some spline considering slices as reference point arrays and generating surfaces from them.

New GreenSpider experimental prototype.

New GreenSpider experimental prototype. Vertex point are connected by Revit splines.
